Timing Chain Adjuster Kit BMW S1000RR, HP4 (2010-2019) July 14 2020

WSBK Timing Chain Adjuster Kit BMW S1000RR, HP4 (2010-2019)

Here is our first installment of the new BMW S100RR, HP4, HP4 Race -  Resource Blog, we hope you enjoy reading our content and come back for our weekly posts about technical subjects, maintenance tips and installation instructions for WSBK parts and accessories for your BMW motorcycle.

If you have any subject you would like us to write about in detail, please email support@motorrad-1.com with Subject: BLOG Post Request. We also welcome your comments and feedback too.

In todays blog we are going to discuss the benefits of this special part, and show you a step by step installation.

Installation Instructions for WSBK Timing Chain Adjuster Kit for BMW S1000 RR, HP4, HP4 RACE (2010+, 2015+)



This adjustable timing chain tensioner kit will provide you with a more precise valve timing by removing the inherent excess play of the OEM hydraulic unit. The part allows for a predetermined set chain tension (that can be increased as the chain wears and stretches) giving you optimum cam timing throughout the service life of your chain.

Being fully adjustable and allowing for incremental increases in chain tension as needed, you will alleviate Cylinder 1 valve timing issues resulting from the OEM cantilevered cam chain drive design (cylinder 1 being the farthest from the chain and optimum valve timing). That design allows for excessive harmonics and vibration in an engine that revs at 14,500+ rpm, and sometimes even higher in our fully built and modified race engines.

We highly recommend that this service work be performed at our service facility or an Authorized BMW Motorrad Service Center, otherwise serious damage and/or failure of the engine could result. Always consult the BMW Repair Service Manual CD for you specific model, and have the appropriate tools and compounds required before starting (i.e. – Loctite, etc.)

The essentials you will need are:

- A reliable and calibrated torque wrench that reads in metric Nm

- A vernier caliper (a digital unit is more precise)

- A 24mm socket

- A 14mm deep socket

- Loctite 242 Medium Strength

OK, let's get started.

Step 1.
             Turn the crankshaft to top dead center (cylinder 1 and 4).
You can use the BMW Cam Timing Tool available here in our shop.

Step 2.             Remove all original timing chain adjuster parts and                                                       components, see picture 1.

Step 3.             Pre-adjust the timing chain tensioner as shown in picture 2. The head of the threaded thrust pin should protrude about 5mm.

Step 4.             Mount the timing chain adjuster housing (24mm) to the cylinder                               head and tighten it with 30Nm.


Step 5.             Turn back the aluminum nut (14mm) by about 3 turns as shown in                            picture 3, screw in the threaded thrust pin and tighten with 0.6 Nm.                                    Apply some Loctite 242 Medium Strength and counter-tighten the                          aluminum nut with 20Nm.


You are finished with your installation! Please take a moment and go back through the steps here and check your work.




HP4 "Superleggera Killer" (Limited Edition) Project September 18 2019

The HP4 "Superleggera Killer" with 218HP in Superstock configuration, HP Race Electronics and DTC, Race DDC Suspension, Race L-Con, PVM Magnesium Wheels, alpha Racing Lightweight Race Subframe, Carbon Race body with custom SL Killer race livery, and many more alpha Racing Special Parts. Numbered units were limited to 10. SOLD OUT.

(Note: Ohlins 300 Gas Charged WSBK Forks are optional).

Specifications:

FIM World Superstock Build
2014 BMW S1000 (HP4) 2013- BMW HP4 RR Chassis & Swingarm 1

WHEELS
3631A080A01-01 Forged Magnesium PVM Racing R Wheel Set for BMW HP4 1
3631HP28A00-01 alpha Racing Rear Wheel Spacers, S1000RR/HP4 1
87128 SC-Pirelli Pirelli Super Corsa Tires 1
3631A060A00-01 alpha Racing Torque Cushion for PVM Wheels 5
3631A002A00-01 alpha Racing 90° Angled Tubeless Valve for OEM Wheel (11.3mm) 2

BRAKES
3421A100A00-01 alpha Racing Rear Brake Disc 220 x 4mm for BMW HP4 for PVM Racing Wheel 1
3411A100B06-RL alpha Racing Front Brake Disc 320 x 5.5mm EVO Left/Right, for PVM 2
3271A013A00-01 Brembo Radial Master Cylinder 19RCS for BMW S1000 - HP4 1
3432A001A01-01 alpha Racing Rear Brake Line (630 mm) 1
3411A120C00-01 alpha Racing Brake Pad Set, Front Duo Carbon HP4 1
3432A010A00-01 alpha Racing Stainless Steel Front Brake Line 3-pc. Set 1
3411A005P00-01 Brembo HP4 Calipers 1
3311A996A00-01 Brake fluid Brembo LCF 600 1

CONTROLS
3271A004B01-01 alpha Racing Fast Throttle Kit 63° with Medium Grips for BMW S1000 RR - HP4 1
3272A021A00-01 alpha Racing WSBK Clutch Lever Assembly 1
3272A002A00-01 alpha Racing Brake Lever, Long for Brembo 19RCS for BMW S1000RR - HP4 1
3272A003A00-01 alpha Racing Remote Brake Lever Adjuster 1
3271A212B00-01 alpha Racing Fast Mount Clip-On Set, 7° Angle for HP4 (55mm Forks) 1
PN Alpha Racing Sock Cover – Embroidered. 1
PN Alpha Racing Brake Reservoir Aluminum Cover 1
3271A001B40-01 alpha Racing Aluminum Steering Stop Kit for S1000 RR - HP4 1
3143A015B00-01 alpha Racing Complete Kit (Plug & Play) Ignition Delete for BMW S1000 RR & HP4 1
4671A001A01-01 alpha Racing Rear Sets for BMW S1000 RR & HP4 1
6131A090C00-01 alpha Racing BMW HP4 Race Switches Kit "Plug & Play" 1

CARBON BODYWORK
4663A201C01-01F alpha Racing Complete Racebody Kit, from WSBK/WSSK in Carbon 1
aP-CP-9999-SP Custom Paintwork by alpha – Wheel Color to Match (SL Ducati PPG) 1
4663A090A02-01 Racing Windscreen Long for Race Fairing Kit, Clear, with color matched decal. 1
4663A201A20-01 alpha Racing Quick Fairing Mounting Kit, 7 pcs. 1


ACCESSORIES
4663A300A10-01 alpha Racing Carbon Fiber (Shark Fin) Chain Protector
17117687715-01 alpha Racing Radiator Cap 1.8 Bar for BMW S1000 RR & HP4 1
1712A001A00-01 alpha Racing Coolant Hose Kit for BMW S1000 RR & HP4 1
DID-520-ERV D.I.D 520 ERV3 RACING CHAIN 1
PN- alpha REAR SPROCKET - Teeth: 1
PN- alpha FRONT SPROCKET - Teeth: 1
8123A010B02-01 alpha Racing Rear Spool Set for Rear Stand, Black for BMW S1000 & HP4 1

Electronics
aPXX1A001A00-01 alpha Racing Bump & Blip CLUTCHLESS DOWNSHIFTING System 1
3451A010A00-01 alpha Racing DTC Race Controller Kit Box for BMW S1000 - HP4
13618523966-01KIT Complete Kit HP Race ECU, Unlock, Calibration Kit 2, Unlock for S1000 RR & HP4
12527727856 BMW S1000RR Slick Mode Enabling Plug 1
6113A001A00-01 alpha Racing Racing Plug Set, 5-piece for BMW S1000 RR - HP4 1
6121A000A00-01 alpha Racing Lithium Polymer Racing Battery 1

Power Upgrades
ST1EN100‐RE1 SSTK 1000 RACE MOTOR, (218 HP), Stage 3 head, Stage 1 cams, V1 Springs. 1
1172A001A00-01 alpha Racing SAS System Valvecover Block-off Plates for BMW S1000 RR & HP4
1173A001A00-01 alpha Racing SAS Airbox Cover Plate for BMW S1000RR & HP4 1
AR100111A2DTC alphaRacing's HP Race Kit ECU Mapping (pre-installed for DTC/DDC/QS) 1
AKRA-100-HP4-L AKRA Competition Exhaust Full System - HP4 1
MC-110Race Racing Air Filter Plate System for HP4 – with Adjustable Angle 1
aP-98172398 Rear rotor, rear brake line and pads, WSBK rear caliper P4, with alpha bracket. 1
PN alphaRacing RACE Air funnel kit (4) pcs. V3.

Production has ended at 10 units.


Racer Chris Siglin's #488 (BMW HP4) Choice as Technical Sponsor September 18 2019

Overall, I’m very impressed with how the system works so far! Thanks for helping us out with this! I’m looking forward to representing you and your Performance products this season!"

2017-2018 BMW Race Mapping for BMW S1000RR (2010-2018), for BMW S 1000 RR/R/XR and HP4 RACE July 30 2018

WSBK Race Mapping Version 2018, BMW S1000 (2010-2018)
Part Number: 1270B580A00-01

WSBK Race Mapping Version 2018, BMW S1000RR (2010-2018), for BMW S 1000 RR/R/XR and HP4, optimized for stock engines with race exhaust system and slick tires.

Benefits:
+ ready to race mapping - know-how of many years of WorldSBK, Superstock 1000 and IDM experience;
+ changes in ECU parameter, no Race Calibration Kit (RCK) data needed;

Race mapping version 2018 including the following optimized functions:

- injection and ignition (optimized torque and power) output (200 real world RWHP or 220+ HP at the Crank) vs. 181 RWHP stock on BMW S1000 RR.


- traction-control by selective cylinder fade-out (CUT's) full gear-dependent, wheelie-control (GDTC+)

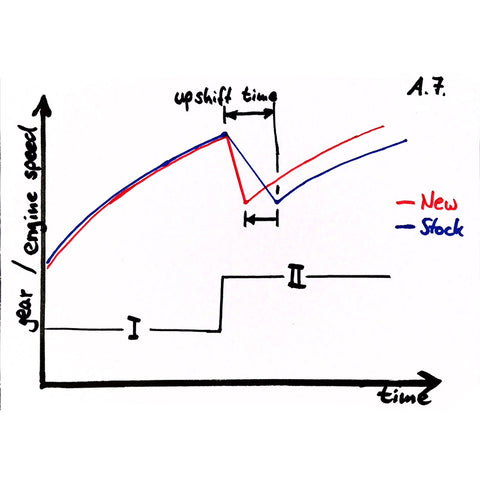

- quick shifter (reduced shift duration + V3 Fast Shift Sensor option)


- engine rpm limitation with soft-cut interruption


- e-throttle optimization (independent in riding modes)


- launch control in first 3 gears
- WSBK level engine braking
- deactivated exhaust servo valves
- deactivated O2 lambda sensors (race fuel compliant)
- deactivated both knock sensors
- deactivated secondary air system (must use our SAS block off plates)
- fuel >= 98ROZ and MR12 now possible.

Note:
- Slick MODE plug required (available in our SHOP);
- Race-setups are rider dependent. For final adjustments the option "ADD ON+ Race Calibration Kit 3 (RCK3) with race mapping" or a custom option is recommended (available in our SHOP too);

Please note:
We need to have the ECU only (on 2010-2020) bikes to install the mapping correctly.
